| 產品規格 | 規格 | 適用纜徑 | 適用光纜檔距 |
|---|---|---|---|
|

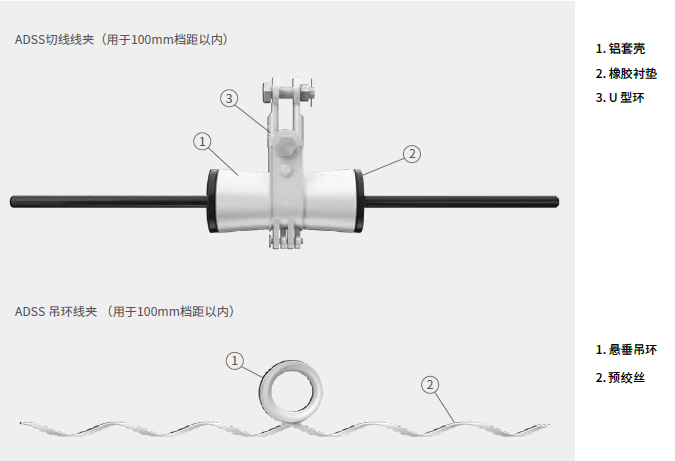

ADSS切線線夾 |
XQA 1300/100 |
10.5~13.0 |
100 |
|
XQA 1550/100 |
13.1~15.5 |
100 |
|
|
XQA 1800/100 |
15.6~18.0 |
100 |
|
|
ADSS吊環線夾 |
XJBA 1080/100 |
10.2~10.8 |
100 |
|
XJBA 1150/100 |
10.9~11.5 |
100 |
|
|
XJBA 1220/100 |
11.6~12.2 |
100 |
|
|
XJBA 1290/100 |
12.3~12.9 |
100 |
|
|
XJBA 1360/100 |
13.0~13.6 |
100 |
|
|
XJBA 1430/100 |
13.7~14.3 |
100 |
|
|
XDA 0940/200 |
8.8~9.4 |
200 |
|
|

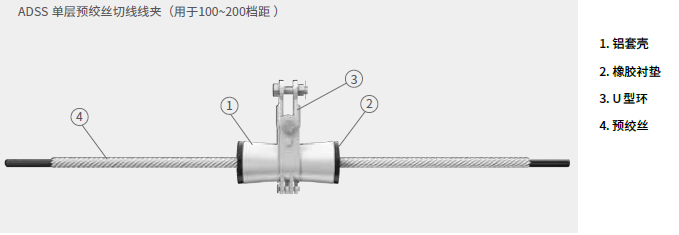

ADSS單層預絞絲切線線夾 |
XDA 1010/200 |
9.5~10.1 |
200 |
|
XDA 1080/200 |
10.2~10.8 |
200 |
|
|
XDA 1150/200 |
10.9~11.5 |
200 |
|
|
XDA 1220/200 |
11.6~12.2 |
200 |
|
|
XDA 1290/200 |
12.3~12.9 |
200 |
|
|
XDA 1360/200 |
13.0~13.6 |
200 |
|
|
XDA 1430/200 |
13.7~14.3 |
200 |
注：

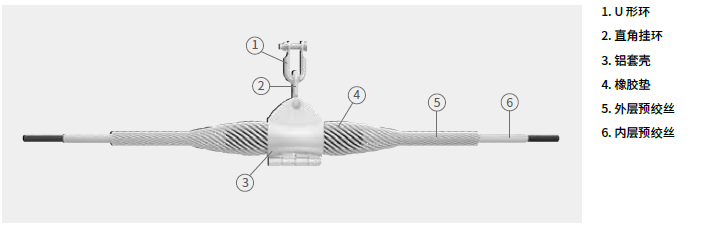

ADSS 光纜懸垂線夾主要由鋁合金預絞絲、懸掛頭及連接件組成。
| 產品規格 | 適用纜徑 | 適用光纜檔距 | |
|---|---|---|---|
|
最小 |
最大 |
||
|
XJA 940/300 |
8.8 |
9.4 |
200~300 |
|
XJA 1010/300 |
9.5 |
10.1 |
200~300 |
|
XJA 1080/300 |
10.2 |
10.8 |
200~300 |
|
XJA 1150/300 |
10.9 |
11.5 |
200~300 |
|
XJA 1220/300 |
11.6 |
12.2 |
200~300 |
|
XJA 1290/300 |
12.3 |
12.9 |
200~300 |
|
XJA 1360/300 |
13.0 |
13.6 |
200~300 |
|
XJA 1010/400 |
9.5 |
10.1 |
300~400 |
|
XJA 1080/400 |
10.2 |
10.8 |
300~400 |
|
XJA 1150/400 |
10.9 |
11.5 |
300~400 |
|
XJA 1220/400 |
11.6 |
12.2 |
300~400 |
|
XJA 1290/400 |
12.3 |
12.9 |
300~400 |
|
XJA 1360/400 |
13.0 |
13.6 |
300~400 |
|
XJA 1430/400 |
13.7 |
14.3 |
300~400 |
|
XJA 1550/400 |
14.4 |
15.0 |
300~400 |
|
XJA 1150/500 |
10.9 |
11.5 |
400~500 |
|
XJA 1220/500 |
11.6 |
12.2 |
400~500 |
|
XJA 1290/500 |
12.3 |
12.9 |
400~500 |
|
XJA 1360/500 |
13.0 |
13.6 |
400~500 |
|
XJA 1430/500 |
13.7 |
14.3 |
400~500 |
|
XJA 1550/500 |
14.4 |
15.0 |
400~500 |
|
XJA 1570/500 |
15.1 |
15.7 |
400~500 |
|
XJA 1290/600 |
12.3 |
12.9 |
500~600 |
|
XJA 1360/600 |
13.0 |
13.6 |
500~600 |
|
XJA 1430/600 |
13.7 |
14.3 |
500~600 |
|
XJA 1550/600 |
14.4 |
15.0 |
500~600 |
|
XJA 1570/600 |
15.1 |
15.7 |
500~600 |
|
XJA 1640/600 |
15.8 |
16.4 |
500~600 |
|
XJA 1360/800 |
13.0 |
13.6 |
700~800 |
|
XJA 1430/800 |
13.7 |
14.3 |
700~800 |
|
XJA 1550/800 |
14.4 |
15.0 |
700~800 |
|
XJA 1570/800 |
15.1 |
15.7 |
700~800 |
|
XJA 1640/800 |
15.8 |
16.4 |
700~800 |
|
XJA 1710/800 |
16.5 |
17.1 |
700~800 |
|
XJA 1570/1000 |
15.1 |
15.7 |
900~1000 |
|
XJA 1640/1000 |
15.8 |
16.4 |
900~1000 |
|
XJA 1710/1000 |
16.5 |
17.1 |
900~1000 |
|
XJA 1780/1000 |
17.2 |
17.8 |
900~1000 |
|
XJA 1850/1000 |
17.9 |
18.5 |
900~1000 |
注：

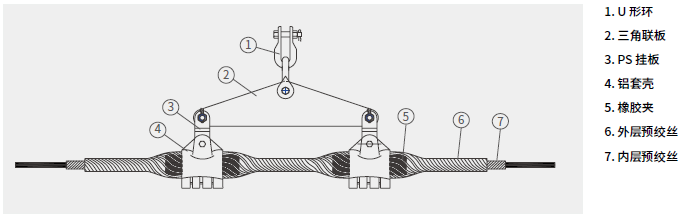

| 產品規格 | 適用纜徑 | 適用光纜檔距 | |
|---|---|---|---|
|
最小 |
最大 |
||
|
XJSA 940/500 |
8.8 |
9.4 |
100~500 |
|
XJSA 1010/500 |
9.5 |
10.1 |
100~500 |
|
XJSA 1080/500 |
10.2 |
10.8 |
100~500 |
|
XJSA 1150/500 |
10.9 |
11.5 |
100~500 |
|
XJSA 1220/500 |
11.6 |
12.2 |
100~500 |
|
XJSA 1290/500 |
12.3 |
12.9 |
100~500 |
|
XJSA 1360/500 |
13.0 |
13.6 |
100~500 |
|
XJSA 1430/500 |
13.7 |
14.3 |
100~500 |
|
XJSA 1500/500 |
14.4 |
15.0 |
100~500 |
|
XJSA 1220/1000 |
11.6 |
12.2 |
600~1000 |
|
XJSA 1290/1000 |
12.3 |
12.9 |
600~1000 |
|
XJSA 1360/1000 |
13.0 |
13.6 |
600~1000 |
|
XJSA 1430/1000 |
13.7 |
14.3 |
600~1000 |
|
XJSA 1500/1000 |
14.4 |
15.0 |
600~1000 |
|
XJSA 1570/1000 |
15.1 |
15.7 |
600~1000 |
|
XJSA 1640/1000 |
15.8 |
16.4 |
600~1000 |
|
XJSA 1710/1000 |
16.5 |
17.1 |
600~1000 |
|
XJSA 1780/1000 |
17.2 |
17.8 |
600~1000 |
|
XJSA 1850/1000 |
17.9 |
18.5 |
600~1000 |
注：
